FUJITSU certain technology and customers requests are packed into these thermal printers.
FP-2000 series have useful functions and the new reliable technology for not only POS system but also mounting KIOSK and order entry tickets in Retail, Hospitality and all other industries. In other words, FP-2000 series will be your best business partner.
User friendly
No.1 printing speed in POS thermal printer
∼ Achievement of "Non-waiting" printing ∼
400mm/s is the Max. printing speed of FP-2200. This is the No.1 printing speed in POS thermal printer in the world.
FP-2100 and FP-2000 are also more enhanced printing speed than previous models.
Optimum driver/Firmware technology and High speed paper feed mechanism enhances the throughput. This enables customers not to waste time.

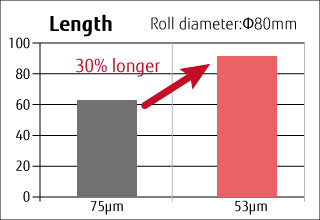

• Printing thin paper (53μm)
∼ Helping running cost for paper consumption 30% OFF ∼
FP-2000 series support printing for thin paper thickness (53μm).
Comparing with 75μm thickness, there is 30% difference of receipt consumption.
FP-2000 series can helps support of low paper consumption for end users
(*53μm paper which width is 50mm and 58mm are not supported.)
• Paper curl adjustment functions (FP-2200 only)
∼ Stress free operation ∼

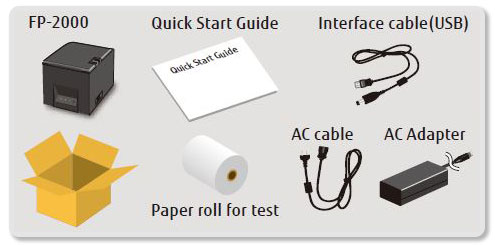

• All in one box
∼ FP-2000 series have everything that you need ∼
All accessories to use this printer are prepared in one box. FP-2000 series can cover the procurement cost and time for preparing accessories.
• Selectable interface cards
∼ Selectable interface cards to accomodate end users needs ∼
USB is a standard interface card with Drawer kick connector and AC connector on the main board. Also, various optional interface cards are available depending on end user’s usage environments.
FJUJITSU advanced technology of FP-2000 series
• Simulated 180 dpi printing mode
∼ Similar printing quality with major printer maker ∼
From FP-2000 series, “180 dpi mode” function is added as the new function. After replace your using POS printer to FP-2000 series, the printing result is similar by this mode. One thermal head can print 203dpi and simulated 180 dpi printing result.
• Automatic optimum printing mode
∼ For the POS system which only provides low power ∼
Printer calculates the density of print data before printing. Depending on the print density, printer controls power and speed to print clearly. FP-2000 series keep high quality printing result even though your POS system provides low power.
• Completed drivers and software
∼ Preparing necessary drivers and software for your connectivity ∼
Various drivers and software are available with an easy software installer.

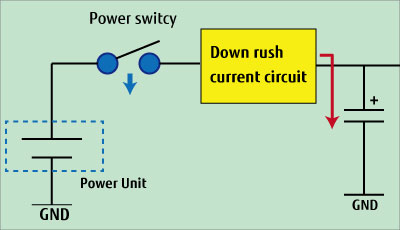

• Support of decreasing rush current (FP-2000, FP-2100 only)
∼ Advanced connectivity for hardware ∼
FP-2100 and FP-2000 are supported by down rush current circuit to decrease the peak of sudden current’s start up. This support prevents the printer from system down in the environment of not using specified FUJITSU AC adaptor or using powered USB.
Specs :
Printing Technology |
Direct Line Thermal Method |
Print Resolution |
8 dot/mm (0.125mm/dot) 203dpi |
Printing Speed |
Max.400 mm/sec. |
Max. 300mm/sec. |
Max. 230mm/sec. |
Cutter Method |
Partial cut /Full cut |
Partial cut |
Paper curl Ejection |
Available |
N/A |
N/A |
16 Gray Scale Printing |
Available |
Available |
N/A |
Paper |
Roll Paper, Paper width: 80mm, 58mm, 50mm Outer Diameter of Roll Paper: less than φ83mm Paper Thickness: 53µm - 85µm *53μm thickness paper which width is 50mm and 58mm are not supported. |
Interface | USB |
USB(2.0 Full-speed) |
USB+RS232C |
USB(2.0 Full-speed) + RS232C Serial |
USB+LAN |
USB(2.0 Full-speed) + Wired, 10BASE-T/100BASE-TX |
USB+Bluetooth |
USB(2.0 Full-speed) + Bluetooth |
USB+Powered USB |
USB(2.0 Full-speed) + Powered USB (2.0 Full-speed) |
N/A |
USB+RS232C+LAN |
USB(2.0 Full-speed) + RS232C Serial + Wired, 10BASE-T/100BASE-TX |
Barcode | 1D |
UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128 |
2D |
QR code, PDF417, Data Matrix |
QR code |
Receive Buffer |
Max. 4KB |
Logo Store Memory |
Max.576KB |
Paper Near End |
Available |
Paper End |
Available |
Software Interface |
ESC/POS emulation, 180DPI ESC/POS emulation |
Software
Printer Driver |
Windows *1 |
Windows driver |
OPOS driver (Ver.1.13) |
JavaPOS driver (Ver.1.10) |
Linux |
JavaPOS driver (Ver.1.10) *2 |
CUPS driver *3 |
Printer Utility |
Software to set the printer’s setup items(only Windows OS) |
SDK |
Android :
LAN / Bluetooth : USB :
2.3.3 or more 3.1 or more
|
iOS :
LAN / Bluetooth :
6.1.3 or more
|
∗1 : |
Support OS Windows® 10, Windows Server® 2016,Windows Server® 2012 R2, Windows® 8.1 Windows Server® 2008 R2, Windows® 7, Windows Server® 2008, Windows Vista® |
∗2 : |
Support OS Linux SuSE11.4/13.2, Cent OS 6.4. |
∗3 : |
Support OS Ubuntu 14.04 |
