Dell PowerEdge T560 Tower Server featuring dual Intel Xeon Silver 4510 CPUs (12C/24T), 32GB DDR5 5600MT/s RDIMM, and 2x480GB SATA SSDs. Includes PERC H755 RAID, 1100W power supply, iDRAC9 Enterprise, 10GbE networking, and TPM 2.0

Manufacturer: DELL

PowerEdge T560 : 8x3.5''Chassis SAS/SATA, 2 CPU, PERC 11 Dual Intel Xeon Silver 4510 2.4G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-440, 2x16GB RDIMM, 5600MT/s, Single Rank, 2x480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 3.5in HYB CARR, PERC H755 SAS Front, Dual, Hot-Plug Non-Redundant (2+0) Power Supply, 1100W MM (ONLY FOR 100-240Vac), Titanium, C13 to C14, PDU Style, 10 AMP, 6.5 Feet (2m), Power Cord, Riser Config0, No PCIe Riser, iDRAC9, Enterprise 16G, Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM, MLK, Broadcom 57416 Dual Port 10GbE BASE-T Adapter, OCP NIC, Parallax Security Bezel, Two Layer Door, IDRAC9, Enterprise 16G, Trusted Platform Module 2.0 V3, 3Yr ProSupport and Next Business Day

SKU: DELL T560

Availability: In stock

322400 EGP

Qty:

i h

Delivery date: 1-3 days

Overview
Reviews
Contact Us

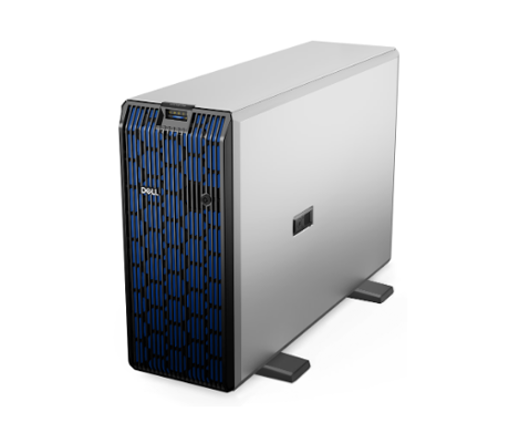

Dell PowerEdge T560 Tower Server

Specifications

Processor - 2 Sockets

Up to two 4th Generation Intel Xeon Scalable processor, with up to 32 cores per processor and optional Intel QuickAssist Technology

Memory

16x DDR4 DIMM slots
Supports RDIMM 1TB max
Speed: Up to 4800MT/s

Storage

Up to 12 x 3.5-inch SAS/SATA HDD drives
Up to 8 x 3.5-inch SAS/SATA HDD drives
Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives
Up to 8 x 2.5-inch SAS/SATA HDD drives
Up to 16 x 2.5-inch SAS/SATA HDD drives
Up to 24 x 2.5-inch SAS/SATA HDD drives

Expansion Slots

Slot 1: x16 Gen5 Full height, Full length
Slot 2: x16 Gen5 Full height, Full length
Slot 3: x16 Gen4 Full height, Half length
Slot 4: x16 Gen4 Full height, Half length
Slot 5: x16 (x8 lanes) Gen4 Full height, Half length
Slot 6: x16 Gen4 Full height, Half length

Controllers

Internal PERC: fPERC H965i, fPERC H755N, fPERC H755, fPERC H355, fPERC HBA355i
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB
External HBA (non-RAID): PERC HBA355e
Software RAID: S160 (for NVMe drives only)

Ports

Front Ports

1 x USB 2.0
1 x USB 3.0
1 x iDRAC Direct (Micro-AB USB) port

Rear Ports

1 x Dedicated iDRAC (RJ45) port
2 x Ethernet ports
1 x Serial port (optional)
1 x VGA port
1 x USB 2.0
1 x USB 3.0

OS Compatibility

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi

Power Supply

2400 W Platinum 100—240 VAC or 2400 W 240 VDC, hot swap redundant
1800 W Titanium 200—240 VAC or 1800 W 240 VDC, hot swap redundant
1400 W Platinum 100—240 VAC or 1400 W 240 VDC, hot swap redundant
1100 W Titanium 100—240 VAC or 1100 W 240 VDC, hot swap redundant
1100 LVDC -48 — (-60) VDC, hot swap redundant
800 W Platinum 100—240 VAC or 800 W 240 VDC, hot swap redundant
700 W Titanium 200—240 VAC or 700 W 240 VDC, hot swap redundant
600 W Platinum 100—240 VAC or 600 W 240 VDC, hot swap redundant

Cooling Options

Up to 8x Standard (STD) fans or High performance (HPR) fans
Air cooling

Management

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 Wireless module

Security

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secured Component Verification (Hardware integrity check)
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Chassis

Height — 464.0 mm (18.26 inches) (with feet)
Height — 508.8 mm (20.03 inches) (with caster wheels)
Height — 446.0 mm (17.60 inches) (without feet)

Width — 200.0 mm (7.87 inches)

Depth — 678.2 mm (26.70 inches) (with bezel)
Depth — 660.6 mm (26 inches) (without bezel)
