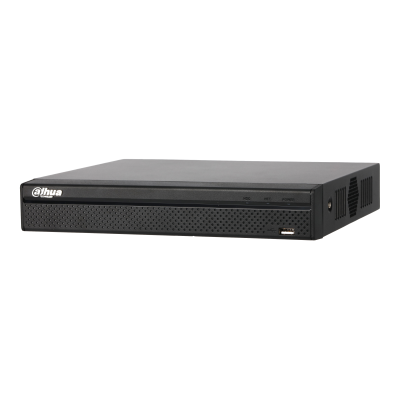

    Dahua-Security NVR-4104H

    Manufacturer: Dahua
    Dahua-Security NVR-4104H H.265/H.264 codec decoding > Max 80Mbps Incoming Bandwidth > Up to 8MP Resolution for Preview and Playback > HDMI/VGA simultaneous video output > Support IPC UPnP, 4PoE ports > Support ANR technology to enhance the storage reliability when the network break down
    3100 EGP
    2399 EGP
    i h
    Delivery date: 1-3 days

    Dahua-Security NVR-4104H

    H.265/H.264 codec decoding
    > Max 80Mbps Incoming Bandwidth
    > Up to 8MP Resolution for Preview and Playback
    > HDMI/VGA simultaneous video output
    > Support IPC UPnP, 4PoE ports
    > Support ANR technology to enhance the storage reliability when the network break down

    NVR 4104H Specifications

    System
    Main Processor Quad-core embedded processor
    Operating System Embedded LINUX
    Display
    Interface 1 HDMI, 1 VGA
    Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
    Multi-screen Display 4CH: 1/4

    OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
    Video Detection and Alarm
    Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
    Video Detection Motion Detection, MD Zones: 396 (22 × 18),



    Video Loss and Tampering

    Alarm input N/A
    Relay Output N/A
    Playback and Backup
    Playback 4CH: 1/4

    Search Mode Time /Date, MD and Exact Search



    (accurate to second), Smart search

    Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play,



    Next File, Previous File, Next Camera,

    Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

    Backup Mode USB Device/Network
    Storage
    Internal HDD 1 SATA III Port, Up to 6 TB capacity for each HDD
    HDD Mode Single
    eSATA N/A
    Auxiliary Interface
    USB 2 USB Ports (2 USB2.0)
    RS232 N/A
    RS485 N/A
    Third-party Support
    Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom,



    Canon, CP Plus, Dynacolor, Honeywell, Panasonic,

    Pelco, Samsung, Sanyo, Sony, Videotec, and more

    Audio and Video
    IP Camera Input 4 Channel
    Two-way Talk 1 Channel Input, 1 Channel Output, RCA
    Recording
    Compression H.265/H.264
    Resolution 8Mp/ 6Mp/ 5MP4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
    Record Rate 80Mbps
    Bit Rate 16Kbps ~ 20Mbps Per Channel
    Record Mode

    Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection,

    Tampering, Video Loss), Stop

    Record Interval 1 ~ 120 min (default: 60 min), Pre-record:



    1 ~ 30 sec, Post-record: 10 ~ 300 sec

    Network
    Interface 1 RJ-45 Port (10/100Mbps)
    Ethernet Port 1 Independent 100Mbps Ethernet Port
    PoE 4 ports (IEEE802.3at/af) (4Mbps is recommended per channel)
    Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,



    IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip

    Max. User Access 128 users
    Smart Phone iPhone, iPad, Android
    Interoperability ONVIF 2.4, CGI Conformant
    Electrical
    Power Supply DC48V/1.5A
    Power Consumption NVR: <7.5W (Without HDD)
    PoE: Max 25.5W for single port, 50W in total
    Environmental
    Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
    Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
    Construction
    Dimensions Compact 1U, 260mm×224.9mm×47.6mm



    (10.2″ x 8.9″ x 1.9″)

    Net Weight 0.8kg (1.76 lb) (without HDD)
    Gross Weight 1.6kg(3.53 lb)(without HDD)
    Certifications
    CE EN55032, EN55024, EN50130-4, EN60950-1
    FCC Part 15 Subpart B, ANSI C63.4-2014
    UL UL60950-1+CAN/CSA C22.2 No.60950-1
